PRODUCTS / SHARKCAGE / ORIGINAL / ORIGINAL LARGE
CODE
SC-CI-LG-4P-02

Download product sheet

ORIGINAL LARGE

THE ORIGINAL has a collapsible design, with panels on both sides that are detached when accessing equipment in the cage. Each panel is locked individually with a standard padlock. The cage is split in the center with multiple shelf positions on each side.

External dimension
(Width / Depth / Height)
84 '' / 43 '' / 85''
Weight
955lbs
Capacity
5000lbs
Shelf Capacity
1000lbs
NSN
8145-01-512-0923
Material
HDG Steel
Stackability
2 high
Opening (Width / Height)
37''
 /
75''
Shelves
6 compartments - 3 levels
Shelf Positions
12
  • ORIGINAL LARGE SC-CI-LG-4P-02 Product picture

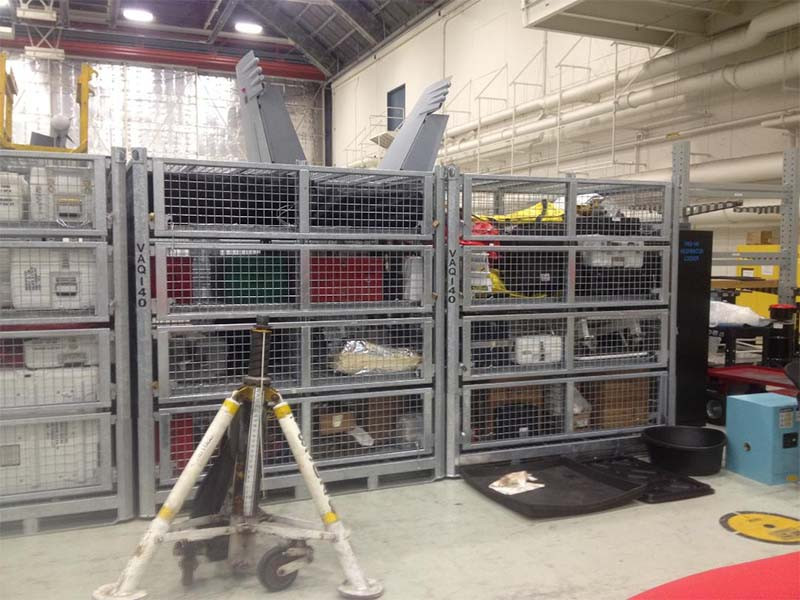

  • ORIGINAL LARGE SC-CI-LG-4P-02 Aviation Maintenance NAS

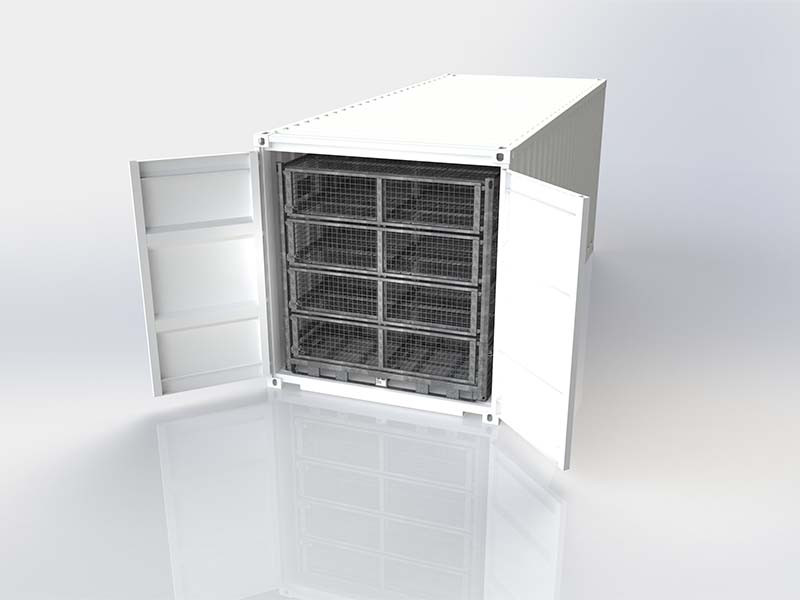

  • ORIGINAL LARGE SC-CI-LG-4P-02 5 ea in 20ft container

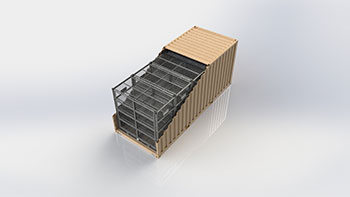

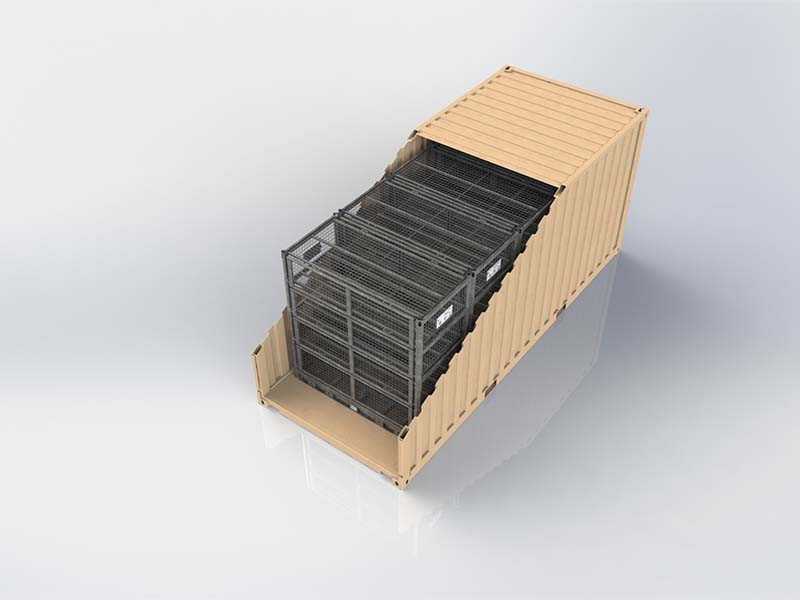

  • ORIGINAL LARGE SC-CI-LG-4P-02 Section view of 5 ea in 20ft container
  • ORIGINAL LARGE SC-CI-LG-4P-02 Section view of 5 ea in 20ft container
  • ORIGINAL LARGE SC-CI-LG-4P-02 Section view of 5 ea in 20ft container
  • ORIGINAL LARGE SC-CI-LG-4P-02 Section view of 5 ea in 20ft container
  • ORIGINAL LARGE SC-CI-LG-4P-02 Section view of 5 ea in 20ft container
Platform Fit

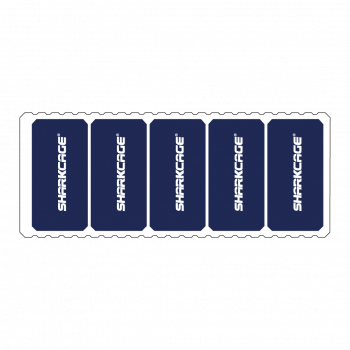

20 ft standard shipping container
QTY: 5 EA
Footprint Utilization: 95%

20 ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 102
Internal dimensions (W / D / H) [in]:
92 / 231 / 93
Door opening (W / H) [in]:
92 / 89

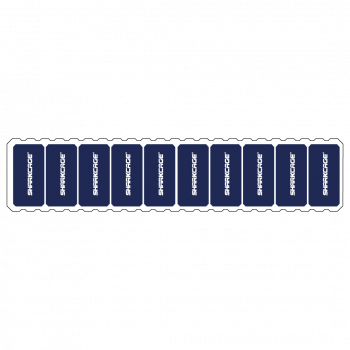

40ft HC (High Cube)
QTY: 10 EA
Footprint Utilization: 92%

40ft HC (High Cube)

External dimensions (W / D / H) [in]:
96 / 480 / 114
Internal dimensions (W / D / H) [in]:
92 / 474 / 106
Door opening (W / H) [in]:
92 / 102
Deviation from standard: Higher than the standard 40'

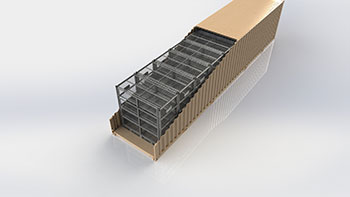

40ft standard shipping container
QTY: 10 EA
Footprint Utilization: 92%

40ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 480 / 102
Internal dimensions (W / D / H) [in]:
92 / 474 / 93
Door opening (W / H) [in]:
92 / 89
463L Air Pallet
QTY: 1 EA
Footprint Utilization: 83%

463L Air Pallet

External dimensions (W / D / H) [in]:
108 / 88 / 2
Internal dimensions (W / D / H) [in]:
104 / 84 / 89
Note: Internal dimensions are usable space with open tie downs
