SHARKCAGE / Collapsible / The Original / Original M

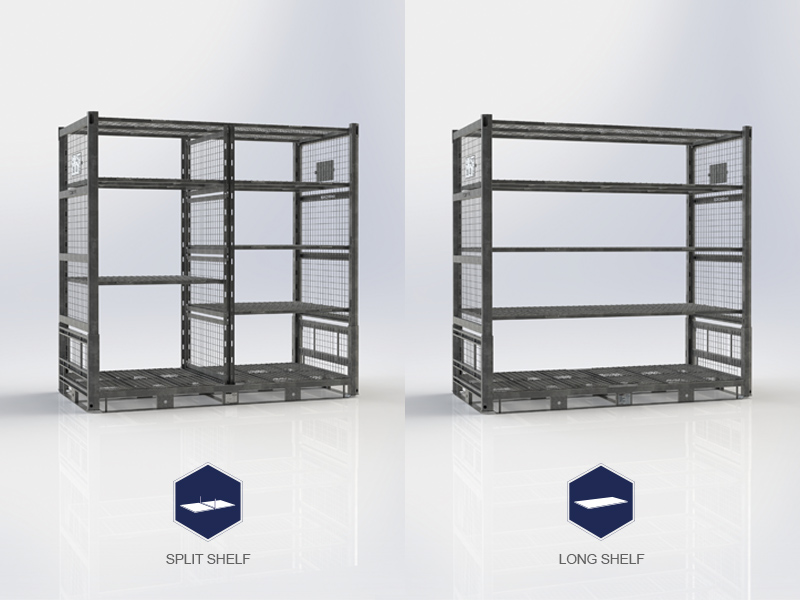

SPLIT SHELF
SC-CI-MD-3P-02
LONG SHELF
SC-CI-MD-3P-03
Download product sheet

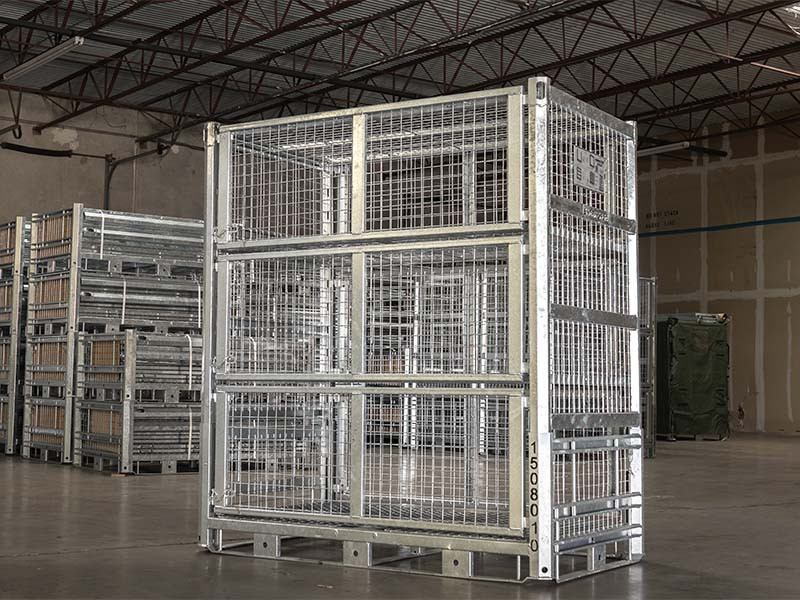

Original M

Designed to maximize the Tricon and Tricon II containers.
( W / D / H)
70'' / 41'' / 78''
178cm / 104cm / 198cm
Weight
640lbs
290kg
Capacity
5000lbs
2270kg
Shelf Capacity
1000lbs
455kg
NSN
8145-01-562-0607
Material
Extra high strength steel
Stackability
15ft
Shelves
6 compartments - 3 levels
Shelf Positions
Multiple

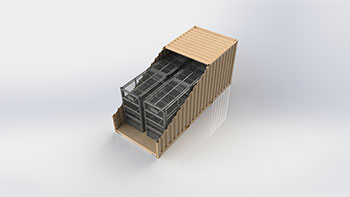

Platform Fit
20 ft standard shipping container
QTY: 6 EA
Footprint Utilization: 94%

20 ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 102
Internal dimensions (W / D / H) [in]:
92 / 231 / 93
Door opening (W / H) [in]:
92 / 89
20ft x 8ft shipping container
QTY: 6 EA
Footprint Utilization: 94%

20ft x 8ft shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 96
Internal dimensions (W / D / H) [in]:
92 / 232 / 88
Door opening (W / H) [in]:
92 / 83
Deviation from standard: Lower than the standard 20' container.

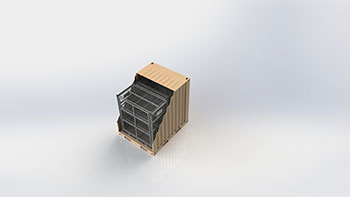

TRICON I
QTY: 2 EA
Footprint Utilization: 88%

TRICON I

External dimensions (W / D / H) [in]:
77 / 96 / 96
Internal dimensions (W / D / H) [in]:
74 / 90 / 89
Door opening (W / H) [in]:
74 / 85
Deviation from standard: Doors on one end
TRICON II
QTY: 2 EA
Footprint Utilization: 88%

TRICON II

External dimensions (W / D / H) [in]:
77 / 96 / 96
Internal dimensions (W / D / H) [in]:
74 / 88 / 88
Door opening (W / H) [in]:
74 / 85
Deviation from standard: Doors on both ends
40ft HC (High Cube)
QTY: 13 EA
Footprint Utilization: 86%

40ft HC (High Cube)

External dimensions (W / D / H) [in]:
96 / 480 / 114
Internal dimensions (W / D / H) [in]:
92 / 474 / 106
Door opening (W / H) [in]:
92 / 102
Deviation from standard: Higher than the standard 40'
40ft standard shipping container
QTY: 13 EA
Footprint Utilization: 86%

40ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 480 / 102
Internal dimensions (W / D / H) [in]:
92 / 474 / 93
Door opening (W / H) [in]:
92 / 89

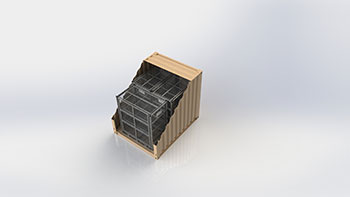

10ft Standard BICON
QTY: 3 EA
Footprint Utilization: 84%

10ft Standard BICON

External dimensions (W / D / H) [in]:
96 / 118 / 102
Internal dimensions (W / D / H) [in]:
92 / 111 / 93
Door opening (W / H) [in]:
92 / 89
10ft x 8ft BICON
QTY: 3 EA
Footprint Utilization: 84%

10ft x 8ft BICON

External dimensions (W / D / H) [in]:
57 / 118 / 96
Internal dimensions (W / D / H) [in]:
92 / 112 / 89
Door opening (W / H) [in]:
92 / 83
463L Air Pallet
QTY: 2 EA
Footprint Utilization: 66%

463L Air Pallet

External dimensions (W / D / H) [in]:
108 / 88 / 2
Internal dimensions (W / D / H) [in]:
104 / 84 / 89
Note: Internal dimensions are usable space with open tie downs
QUADCON 8'
QTY: 1 EA
Footprint Utilization: 57%

QUADCON 8'

External dimensions (W / D / H) [in]:
57 / 96 / 96
Internal dimensions (W / D / H) [in]:
56 / 88 / 88
Door opening (W / H) [in]:
53 / 84
