PRODUCTS / SHARKCAGE / LOCKERS / TACTICAL LOCKER MEDIUM
CODE
SC-TL-MD-2D-03

Download product sheet

TACTICAL LOCKER MEDIUM

The TACTICAL LOCKER MEDIUM is designed to maximize the TRICON, but also utilizes the available space on the CROP, 20ft container and PLS. Content inside the cage is accessed easily through the double doors. Move the shelves up and down in the cage to fit special content. Deep, wide shelves are ideal for storage of larger items. Our most popular cage for aviation maintenance and other maintenance operations where mobility is key.

External dimension
(Width / Depth / Height)
71 '' / 42 '' / 79''
Weight
840lbs
Capacity
5000lbs
Shelf Capacity
1000lbs
NSN
8145-01-512-0901
Material
HDG Steel
Stackability
2 high
Opening (Width / Height)
64''
 /
69''
Shelves
3
Shelf Positions
32
metric / US (imperial)
TACTICAL LOCKER MEDIUM SC-TL-MD-2D-03 1 closed doors

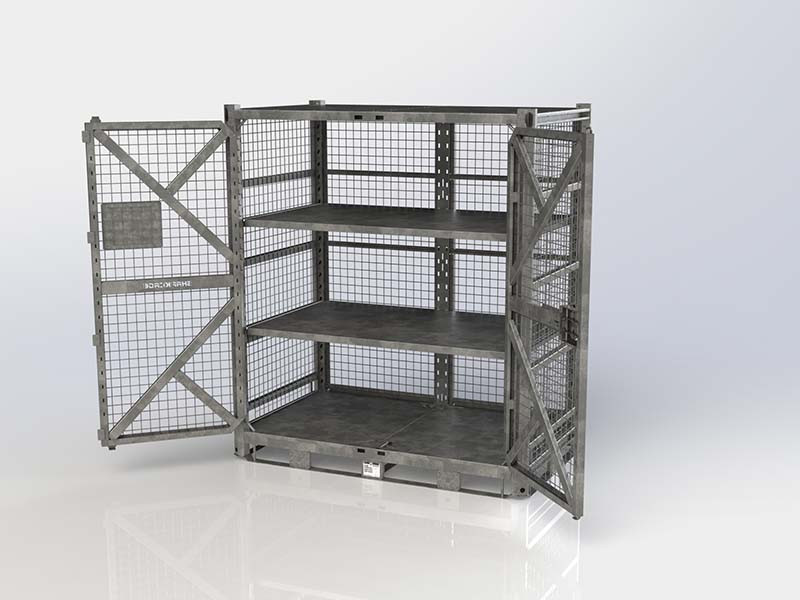

TACTICAL LOCKER MEDIUM SC-TL-MD-2D-03 2 open doors

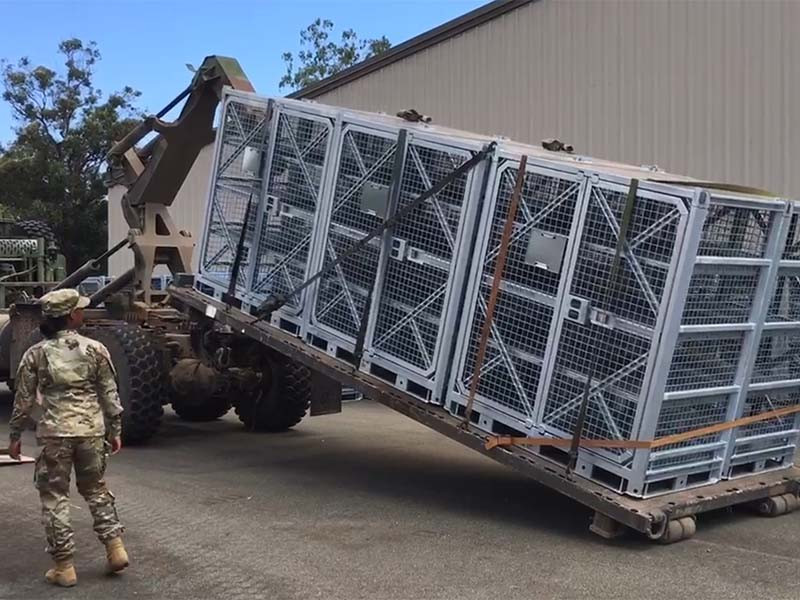

TACTICAL LOCKER MEDIUM SC-TL-MD-2D-03 3 in TRICON container
TACTICAL LOCKER MEDIUM SC-TL-MD-2D-03 4 in maintenance bay
MEDIUM WORKSTATION

MEDIUM WORKSTATION

Recomended QUANTITY
1 EA
CWL WORKSTATION

CWL WORKSTATION

Recomended QUANTITY
1 EA
CONTAINER RAMP

CONTAINER RAMP

Recomended QUANTITY
1 EA
INCLUDED IN THESE KITS
TACTICAL LOCKER MEDIUM Kit

TACTICAL LOCKER MEDIUM Kit

Kit for outfitting a side-opening 20ft ISO container with TACTICAL LOCKER ...
PART NO. KIT
SC-TL-MD-20-81
TACTICAL LOCKER MEDIUM with POB Kit

TACTICAL LOCKER MEDIUM with POB Kit

Kit for outfitting a range of ISO containers with the TACTICAL LOCKER MEDIUM and ...
PART NO. KIT
SC-TL-MD-TC-82
Platform Fit
20 ft standard shipping container
QTY: 6 EA
Footprint Utilization: 94%

20 ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 102
Internal dimensions (W / D / H) [in]:
92 / 231 / 93
Door opening (W / H) [in]:
92 / 89
20ft x 8ft shipping container
QTY: 6 EA
Footprint Utilization: 94%

20ft x 8ft shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 96
Internal dimensions (W / D / H) [in]:
92 / 232 / 88
Door opening (W / H) [in]:
92 / 83
Deviation from standard: Lower than the standard 20' container.
10ft Standard BICON
QTY: 3 EA
Footprint Utilization: 85%

10ft Standard BICON

External dimensions (W / D / H) [in]:
96 / 118 / 102
Internal dimensions (W / D / H) [in]:
92 / 111 / 93
Door opening (W / H) [in]:
92 / 89
40ft HC (High Cube)
QTY: 13 EA
Footprint Utilization: 80%

40ft HC (High Cube)

External dimensions (W / D / H) [in]:
96 / 480 / 114
Internal dimensions (W / D / H) [in]:
92 / 474 / 106
Door opening (W / H) [in]:
92 / 102
Deviation from standard: Higher than the standard 40'
40ft standard shipping container
QTY: 13 EA
Footprint Utilization: 80%

40ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 480 / 102
Internal dimensions (W / D / H) [in]:
92 / 474 / 93
Door opening (W / H) [in]:
92 / 89
20ft sideopening container
QTY: 6 EA
Footprint Utilization: 1%

20ft sideopening container

External dimensions (W / D / H) [in]:
96 / 238 / 102
Internal dimensions (W / D / H) [in]:
90 / 232 / 90
Door opening (W / H) [in]:
224 / 85
Deviation from standard: Opening on each long side.
Features
Custom interiors

Custom interiors

Add custom fasteners or holders to improve organization and simplify content security.
Hinged doors

Hinged doors

Heavy duty hinged doors for easy access to items.
Multiple door configurations

Multiple door configurations

Select from hinged doors or panels when customizing your cage.
Toplift

Toplift

Reinforced corner post and connection points to accommodate crane, helicopter lift and UNREP according to MIL-STD- 913A, -209K and -648D. Weld seams inspected according to RCX-3 to ensure safety.
Forkliftable

Forkliftable

4-way forklift capability compatible with most pallet jacks and forklifts. Designed to fulfill both the STANAG-2828 and 2829, as well as MIL-STD-648D, to ensure operability in joint operations.
Stackable

Stackable

Self-centering corners to ensure safety and efficiency in stacking.
Land-sea-air

Land-sea-air

Strong enough for all modes of strategic transport, designed according to MIL-STD- 1791D, -1366E and STANAG-3400.
Intermodal

Intermodal

Transition seamlessly from one mode of transport to the next according to the definition in MIL-STD-3028.
Content Visibility

Content Visibility

See-through grid enable content visibility at all times. Covers available to temporarily limit visibility.
Lockable

Lockable

Lock using standard issue series 5200 padlocks.
Similar Products
ORIGINAL MEDIUM

ORIGINAL MEDIUM

(Width / Depth / Height)
70 '' / 41 '' / 79''

Perfect fit for TRICON shipping container and good fit in 20ft.
