WST II

The WHEEL STORAGE AND TRANSPORT II was designed to accommodate run-flat MRAP wheels of up to 2,000lbs each, but is also used by units that have low quantities of wheels. The WST II secures the wheels by lowering the entire top construction to lock the wheels in place. The front gate slams shut and can be used to secure the wheels in storage for easier access.
( W / D / H )
44'' / 55'' / 67''
112cm / 140cm / 170cm
Weight
400lbs
180kg
Capacity
5000lbs
2270kg
Shelf Capacity
0lbs
0kg
NSN
n/a
Material
Extra high strength steel
Stackability
15ft
Shelves
n/a
Shelf Positions
n/a
Platform Fit
TRICON I
QTY: 2 EA
Footprint Utilization: 73%

TRICON I

External dimensions (W / D / H) [in]:
77 / 96 / 96
Internal dimensions (W / D / H) [in]:
74 / 90 / 89
Door opening (W / H) [in]:
74 / 85
Deviation from standard: Doors on one end
TRICON II
QTY: 2 EA
Footprint Utilization: 73%

TRICON II

External dimensions (W / D / H) [in]:
77 / 96 / 96
Internal dimensions (W / D / H) [in]:
74 / 88 / 88
Door opening (W / H) [in]:
74 / 85
Deviation from standard: Doors on both ends

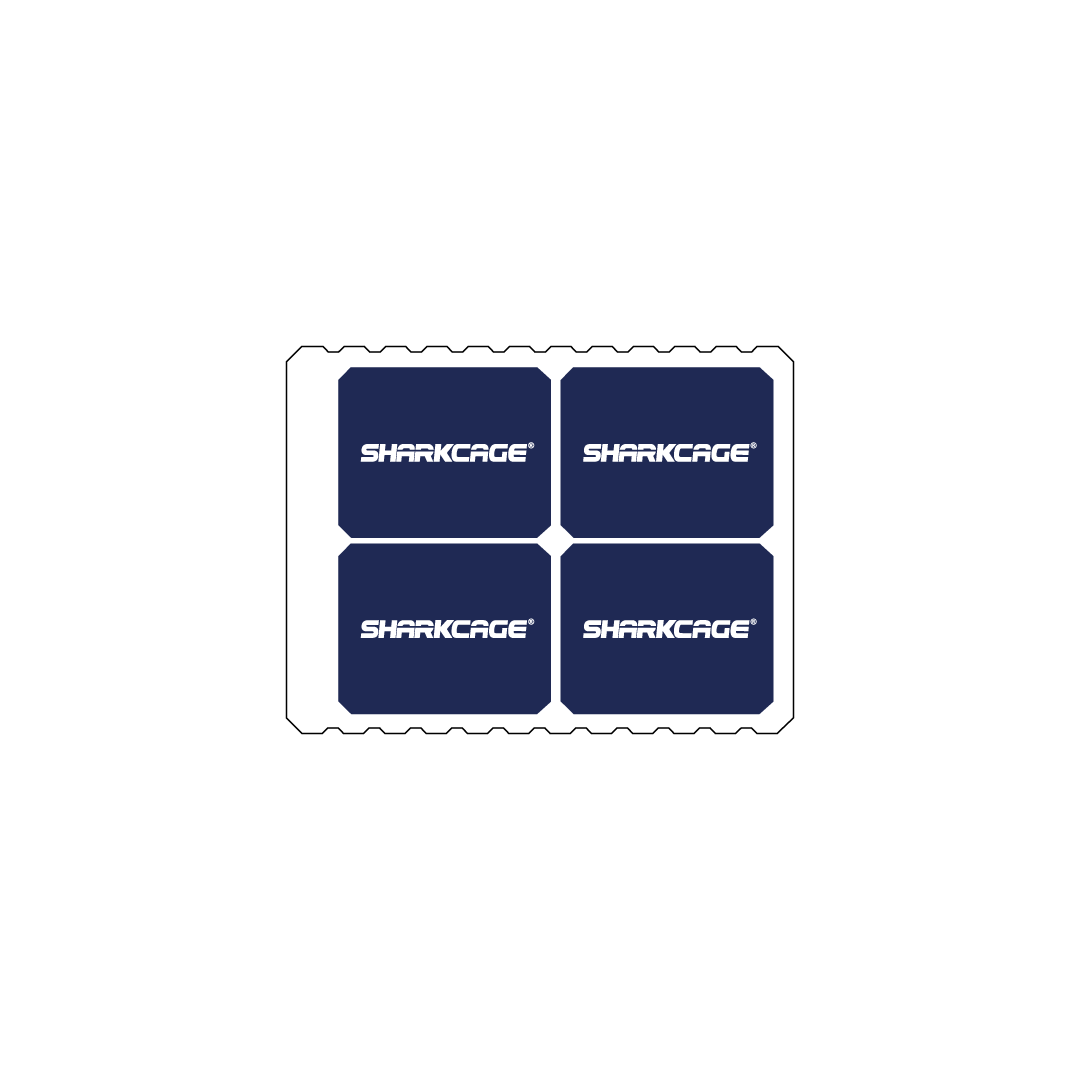

10ft Standard BICON
QTY: 4 EA
Footprint Utilization: 70%

10ft Standard BICON

External dimensions (W / D / H) [in]:
96 / 118 / 102
Internal dimensions (W / D / H) [in]:
92 / 111 / 93
Door opening (W / H) [in]:
92 / 89
10ft x 8ft BICON
QTY: 4 EA
Footprint Utilization: 70%

10ft x 8ft BICON

External dimensions (W / D / H) [in]:
57 / 118 / 96
Internal dimensions (W / D / H) [in]:
92 / 112 / 89
Door opening (W / H) [in]:
92 / 83
M3 CROP
QTY: 6 EA
Footprint Utilization: 59%

M3 CROP

External dimensions (W / D / H) [in]:
91 / 230 / 10
Internal dimensions (W / D / H) [in]:
89 / 217 / 74
Deviation from standard: Fits inside container
Note: Inside dimensions are usable space with access tie downs, height is limitation
463L Air Pallet
QTY: 2 EA
Footprint Utilization: 55%

463L Air Pallet

External dimensions (W / D / H) [in]:
108 / 88 / 2
Internal dimensions (W / D / H) [in]:
104 / 84 / 89
Note: Internal dimensions are usable space with open tie downs
20ft x 8ft shipping container
QTY: 8 EA
Footprint Utilization: 1%

20ft x 8ft shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 96
Internal dimensions (W / D / H) [in]:
92 / 232 / 88
Door opening (W / H) [in]:
92 / 83
Deviation from standard: Lower than the standard 20' container.
QUADCON 8'
QTY: 1 EA
Footprint Utilization: %

QUADCON 8'

External dimensions (W / D / H) [in]:
57 / 96 / 96
Internal dimensions (W / D / H) [in]:
56 / 88 / 88
Door opening (W / H) [in]:
53 / 84
QUADCON II USMC
QTY: 1 EA
Footprint Utilization: %

QUADCON II USMC

External dimensions (W / D / H) [in]:
57 / 96 / 82
Internal dimensions (W / D / H) [in]:
56 / 90 / 74
Door opening (W / H) [in]:
54 / 70
Deviation from standard: Lower height than Quadcon 8'
