Choose Platform
40' container
20' container
QUADCON

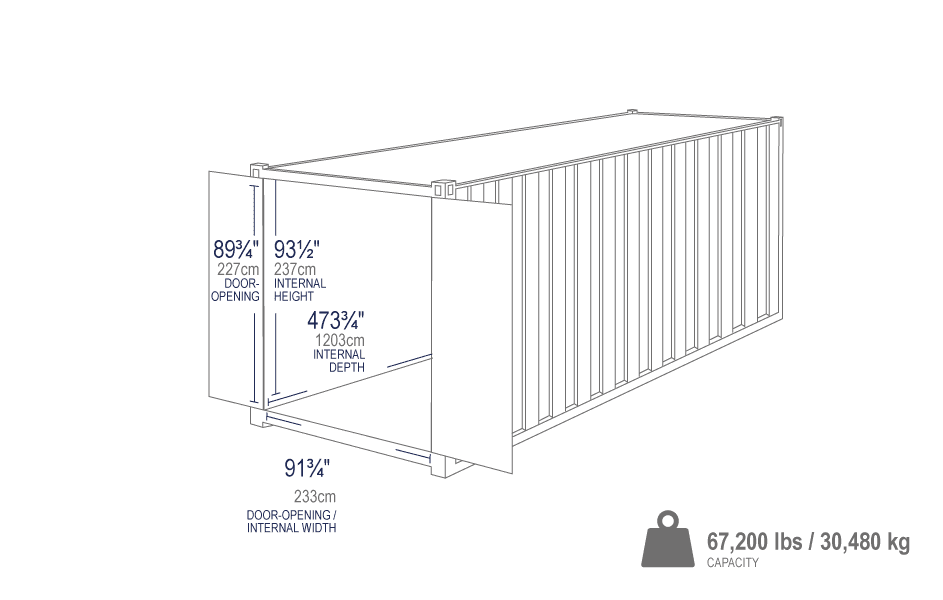

40ft standard shipping container measurments
External dimensions (W / D / H) [in]:
96 / 480 / 102
96 / 480 / 102
Internal dimensions (W / D / H) [in]:
92 / 474 / 93
92 / 474 / 93
Door opening (W / H) [in]:
92 / 89
92 / 89
Container NSN:
8150-01-463-8555 - End doors
8150-01-463-3182 - End doors
8150-01-463-8555 - End doors
8150-01-463-3182 - End doors

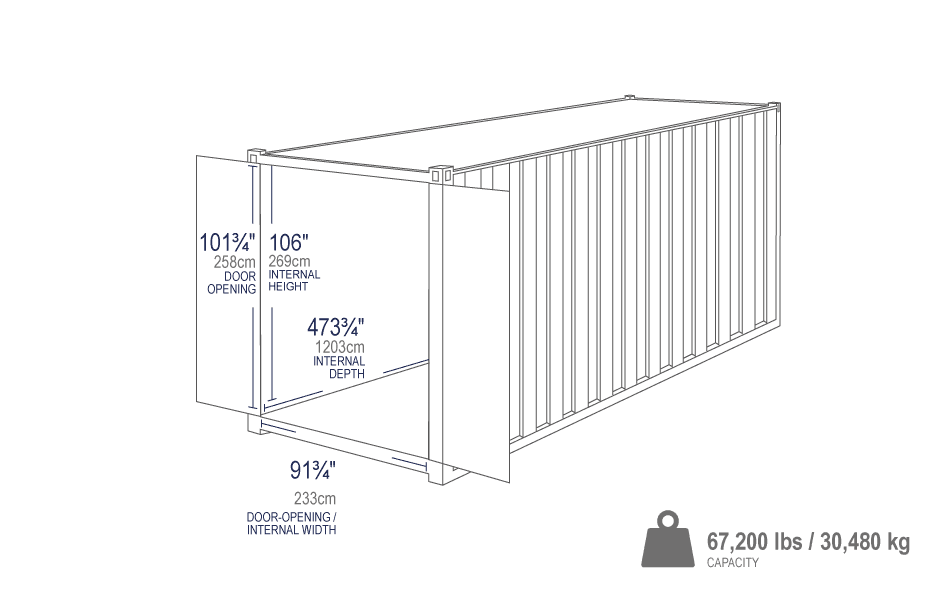

40ft HC (High Cube) measurments
External dimensions (W / D / H) [in]:
96 / 480 / 114
96 / 480 / 114
Internal dimensions (W / D / H) [in]:
92 / 474 / 106
92 / 474 / 106
Door opening (W / H) [in]:
92 / 102
92 / 102
Deviation from standard: Higher than the standard 40'

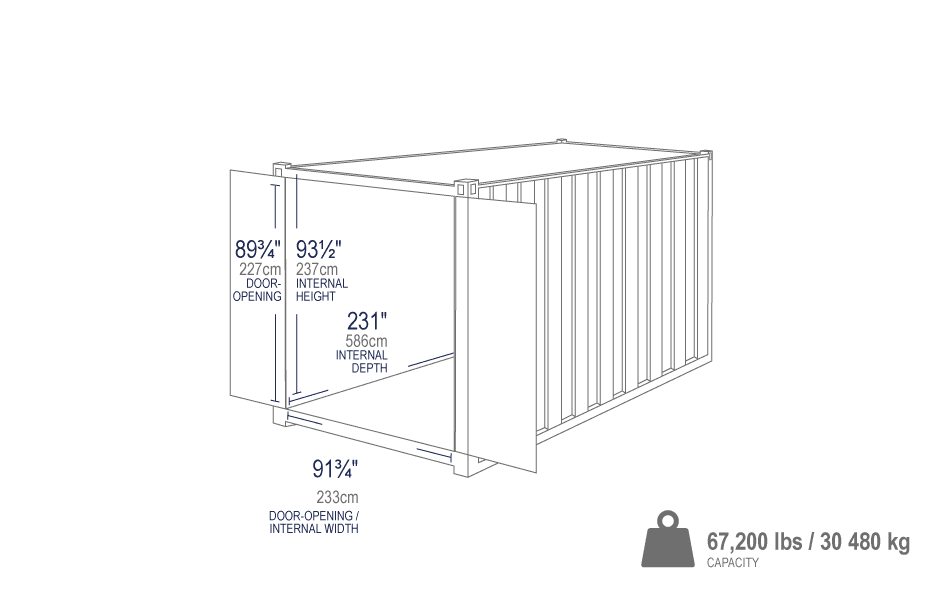

20 ft standard shipping container measurments
External dimensions (W / D / H) [in]:
96 / 238 / 102
96 / 238 / 102
Internal dimensions (W / D / H) [in]:
92 / 231 / 93
92 / 231 / 93
Door opening (W / H) [in]:
92 / 89
92 / 89
Container NSN:
8150-01-463-8553 - End doors
8150-01-463-3177 - End doors
8150-01-513-6282 - End Doors on Both Ends
8150-01-514-8414 - End Doors on Both Ends and 1 Side
8150-01-463-8553 - End doors
8150-01-463-3177 - End doors
8150-01-513-6282 - End Doors on Both Ends
8150-01-514-8414 - End Doors on Both Ends and 1 Side

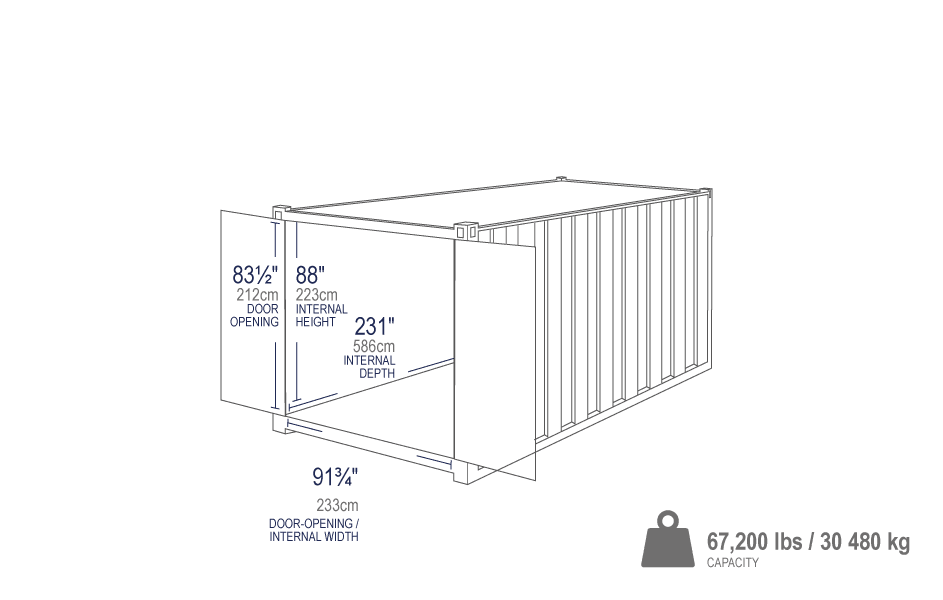

20ft x 8ft shipping container measurments
External dimensions (W / D / H) [in]:
96 / 238 / 96
96 / 238 / 96
Internal dimensions (W / D / H) [in]:
92 / 232 / 88
92 / 232 / 88
Door opening (W / H) [in]:
92 / 83
92 / 83
Deviation from standard: Lower than the standard 20' container.
Container NSN:
8150-01-488-6545 - (Type I) End doors
8150-01-488-6545 - (Type I) End doors

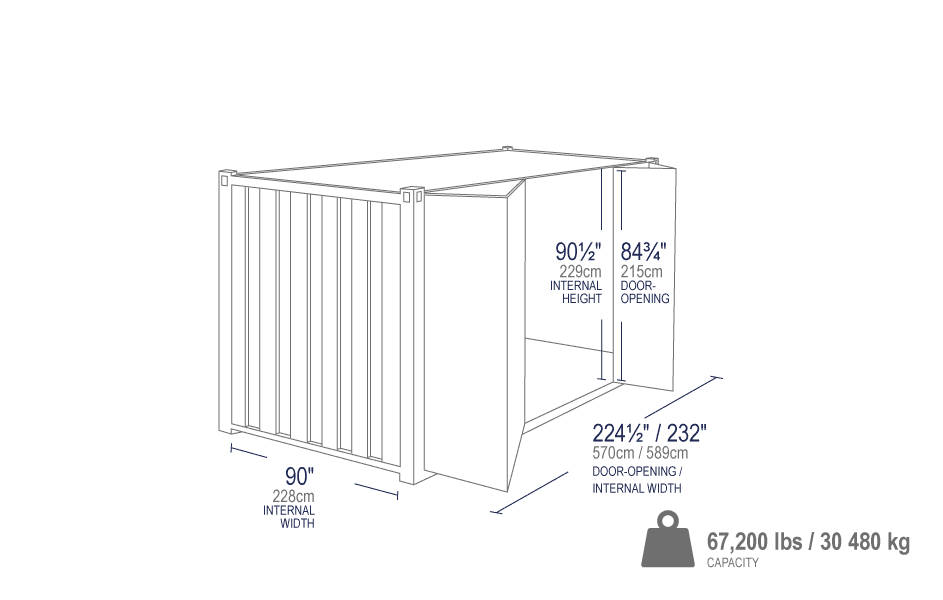

20ft sideopening container measurments
External dimensions (W / D / H) [in]:
96 / 238 / 102
96 / 238 / 102
Internal dimensions (W / D / H) [in]:
90 / 232 / 90
90 / 232 / 90
Door opening (W / H) [in]:
224 / 85
224 / 85
Deviation from standard: Opening on each long side.
Container NSN:
8150-01-513-4913 - Two Full Side Opening, N0 End Doors
8150-01-501-2741 - One Full side Opening, One End Door
8150-01-513-4913 - Two Full Side Opening, N0 End Doors
8150-01-501-2741 - One Full side Opening, One End Door

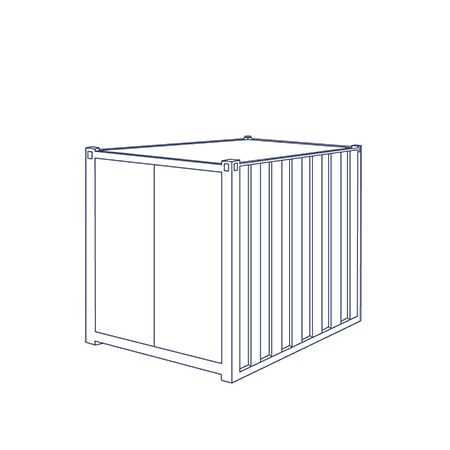

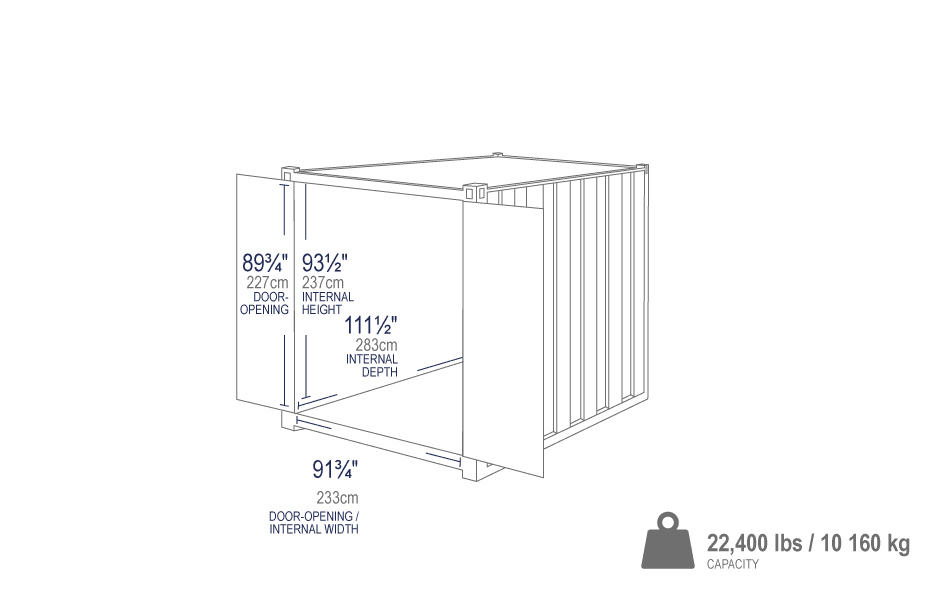

10ft Standard BICON measurments
External dimensions (W / D / H) [in]:
96 / 118 / 102
96 / 118 / 102
Internal dimensions (W / D / H) [in]:
92 / 111 / 93
92 / 111 / 93
Door opening (W / H) [in]:
92 / 89
92 / 89
Container NSN:
8150-01-481-3740 - Olive drab color
8150-01-481-3740 - Olive drab color

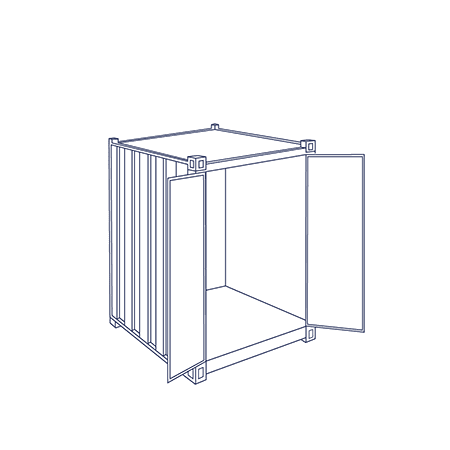

TRICON I measurments
External dimensions (W / D / H) [in]:
77 / 96 / 96
77 / 96 / 96
Internal dimensions (W / D / H) [in]:
74 / 90 / 89
74 / 90 / 89
Door opening (W / H) [in]:
74 / 85
74 / 85
Deviation from standard: Doors on one end
Container NSN:
8150-01-483-9125 - Doors on one end.Tan
8150-01-483-9123 - Doors on one end.Green
8150-01-483-9125 - Doors on one end.Tan
8150-01-483-9123 - Doors on one end.Green
TRICON II measurments
External dimensions (W / D / H) [in]:
77 / 96 / 96
77 / 96 / 96
Internal dimensions (W / D / H) [in]:
74 / 88 / 88
74 / 88 / 88
Door opening (W / H) [in]:
74 / 85
74 / 85
Deviation from standard: Doors on both ends
Container NSN:
8150-01-533-8673 - Doors on both ends. Tan
8150-01-533-8674 - Doors on both ends. Green
8150-01-533-8673 - Doors on both ends. Tan
8150-01-533-8674 - Doors on both ends. Green

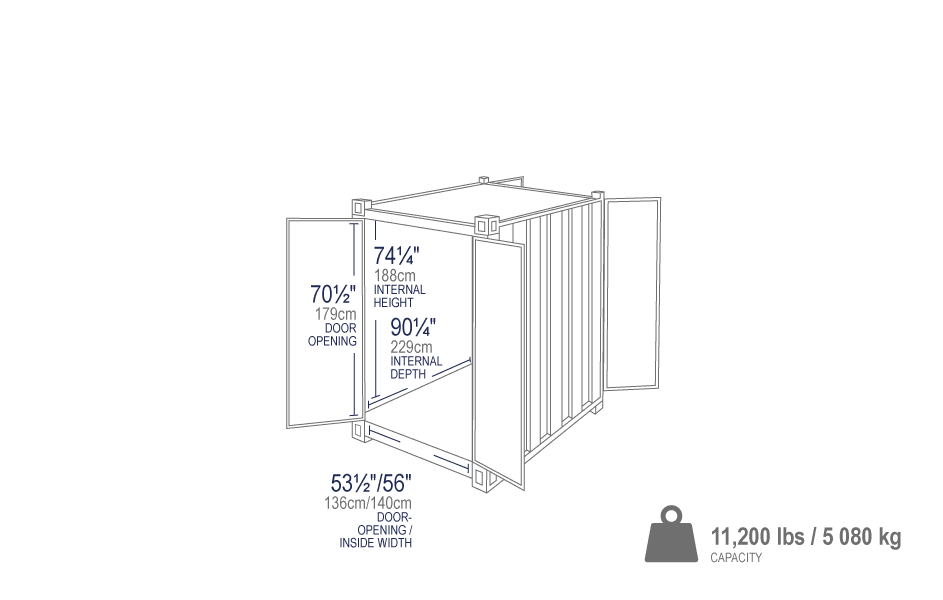

QUADCON II USMC measurments
External dimensions (W / D / H) [in]:
57 / 96 / 82
57 / 96 / 82
Internal dimensions (W / D / H) [in]:
56 / 90 / 74
56 / 90 / 74
Door opening (W / H) [in]:
54 / 70
54 / 70
Deviation from standard: Lower height than Quadcon 8'
Container NSN:
8150-01-533-8675 - Door opening 84". Tan
8150-01-533-8677 - Door opening 84".Green
8150-01-483-9121 - Lower than Quadcon II with 70" door opening. Tan
8150-01-483-9115 - Lower than Quadcon II with 70" door opening.Green
8150-01-533-8675 - Door opening 84". Tan
8150-01-533-8677 - Door opening 84".Green
8150-01-483-9121 - Lower than Quadcon II with 70" door opening. Tan
8150-01-483-9115 - Lower than Quadcon II with 70" door opening.Green

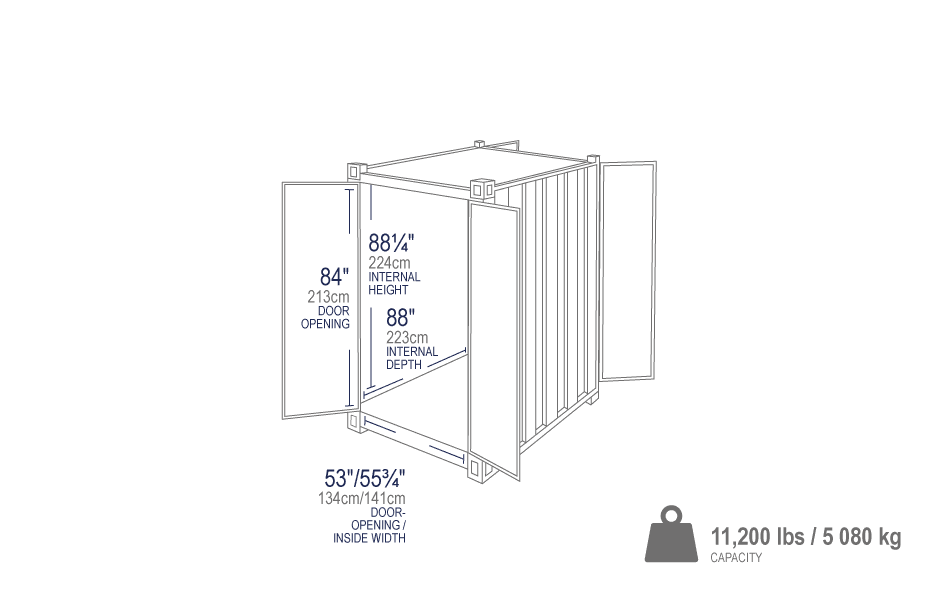

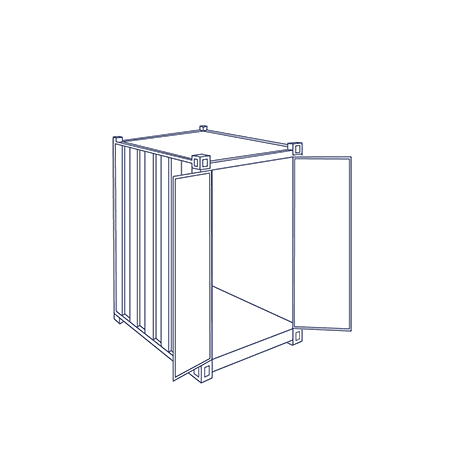

QUADCON 8' measurments
External dimensions (W / D / H) [in]:
57 / 96 / 96
57 / 96 / 96
Internal dimensions (W / D / H) [in]:
56 / 88 / 88
56 / 88 / 88
Door opening (W / H) [in]:
53 / 84
53 / 84

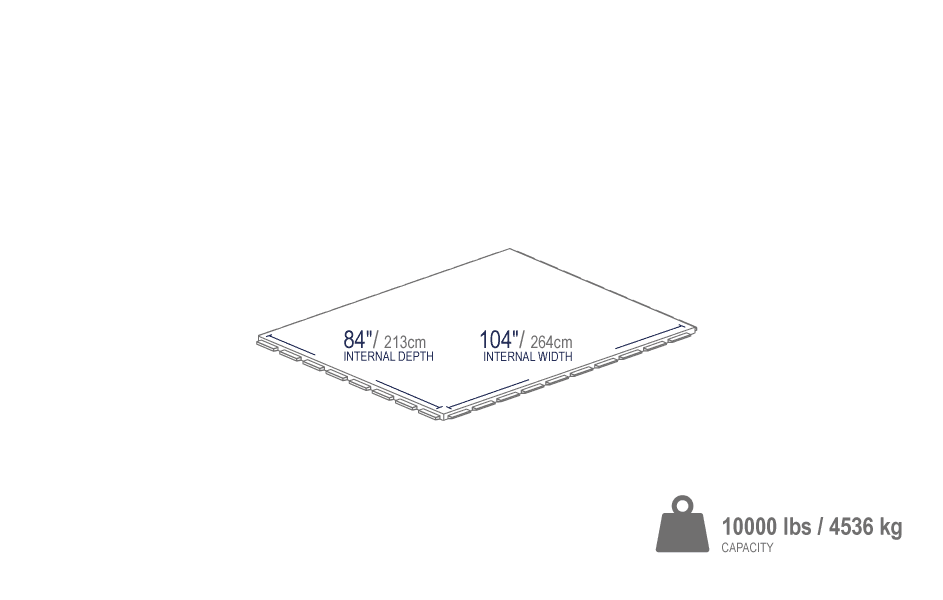

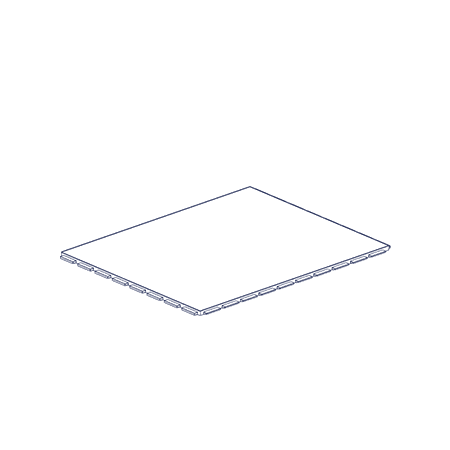

463L Air Pallet measurments
External dimensions (W / D / H) [in]:
108 / 88 / 2
108 / 88 / 2
Internal dimensions (W / D / H) [in]:
104 / 84 / 89
104 / 84 / 89
Note:
Internal dimensions are usable space with open tie downs
Internal dimensions are usable space with open tie downs
Container NSN:
1670-00-820-4896 -
1670-00-820-4896 -

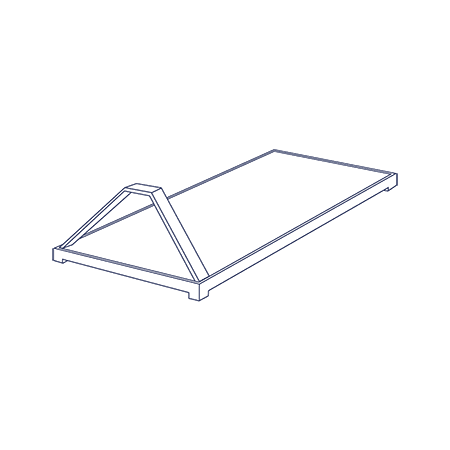

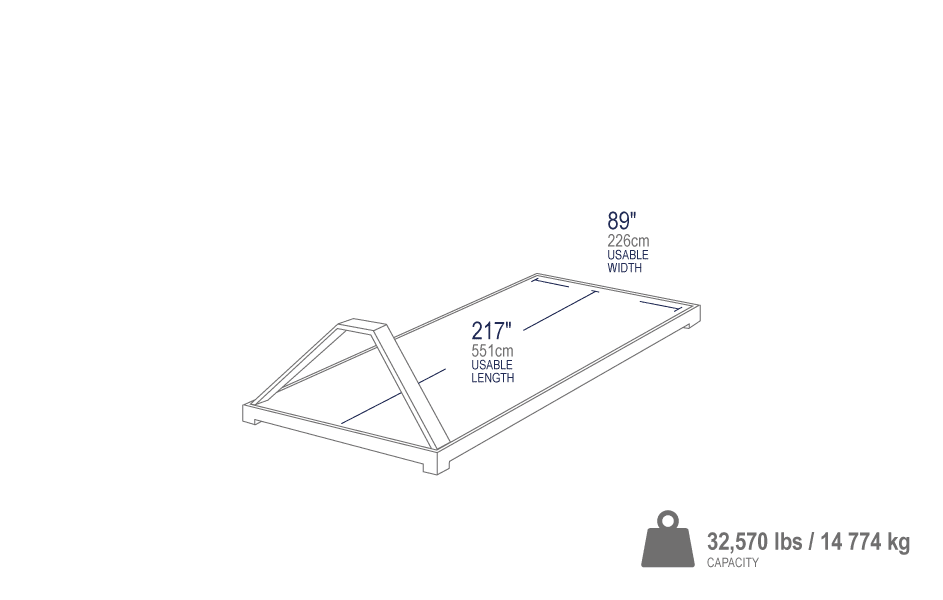

M3 CROP measurments
External dimensions (W / D / H) [in]:
91 / 230 / 10
91 / 230 / 10
Internal dimensions (W / D / H) [in]:
89 / 217 / 74
89 / 217 / 74
Deviation from standard:
Fits inside container
Fits inside container
Note:
Inside dimensions are usable space with access tie downs, height is limitation
Inside dimensions are usable space with access tie downs, height is limitation
Container NSN:
3990-01-442-2751 -
3990-01-442-2751 -

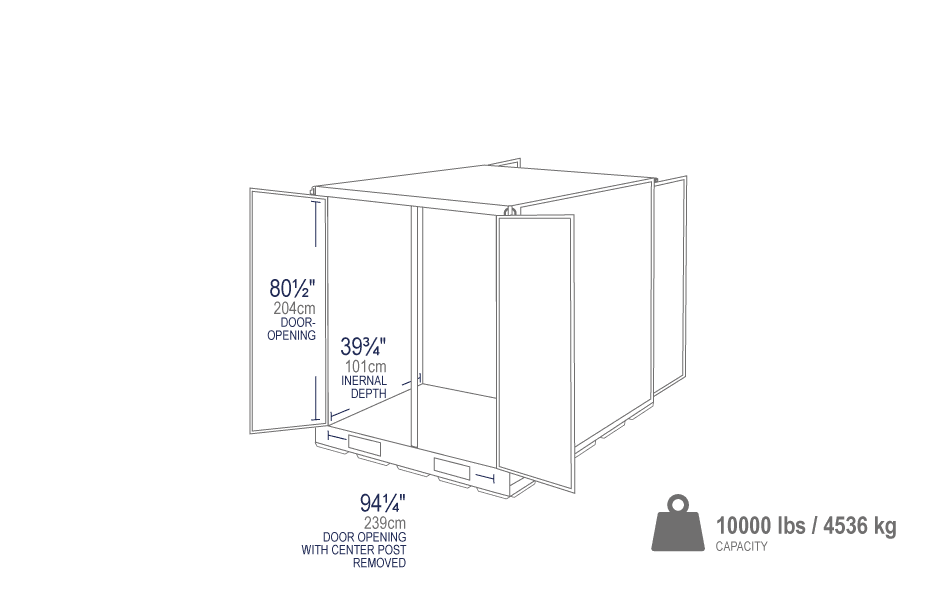

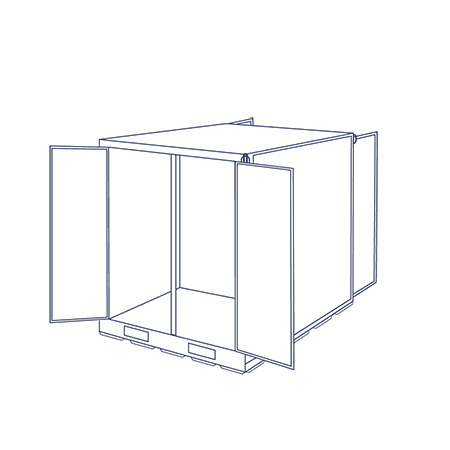

ISU 90 4-DOOR measurments
External dimensions (W / D / H) [in]:
108 / 88 / 91
108 / 88 / 91
Internal dimensions (W / D / H) [in]:
102 / 82 / 83
102 / 82 / 83
Door opening (W / H) [in]:
94 / 81
94 / 81
Capacity [lb]:
10000
10000
Weight [lb]:
1720
1720
Deviation from standard:
Doors on each 108 axis
Doors on each 108 axis
Note:
Inside is usable space without rails, divider wall and other fixtures subtracted. Usable space with divider wall in is 39.89 in
Inside is usable space without rails, divider wall and other fixtures subtracted. Usable space with divider wall in is 39.89 in
Container NSN:
8145-01-465-3621 - Forest Green
8145-01-465-4187 - Desert Tan
8145-01-465-3621 - Forest Green
8145-01-465-4187 - Desert Tan
Choose container lay-out

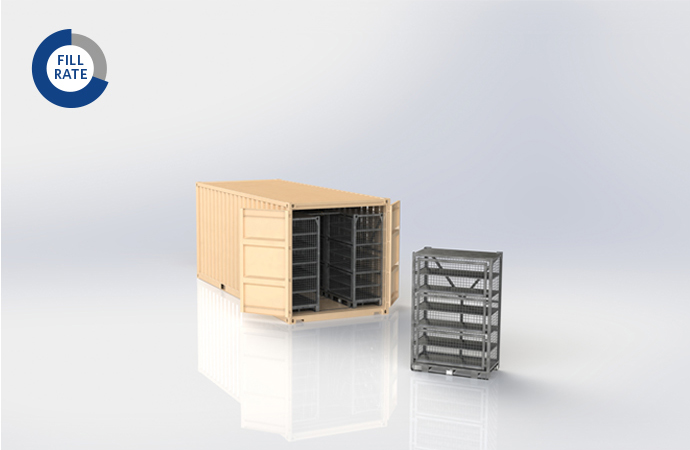

Full access
The best fit when you need to setup a new warehouse at your destination

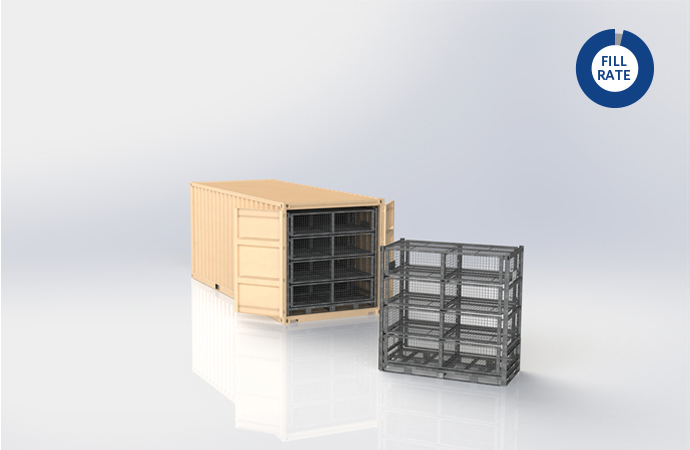

Maximum fill
Maximizes the available space in the container
