PRODUCTS / SHARKCAGE / LOCKERS / TACTICAL LOCKER i90
CODE
SC-TL-90-2D-02

Download product sheet

TACTICAL LOCKER i90

The TACTICAL LOCKER I90 is made to maximize the available space in the ISU 90 4-door container. The cage has double doors secured by one standard padlock. 4 ea fit in the ISU 90 4-door container (108"W / 88"L).

External dimension
(Width / Depth / Height)
49 '' / 39 '' / 79''
Weight
550lbs
Capacity
4000lbs
Shelf Capacity
750lbs
NSN
8145-01-512-1025
Material
HDG Steel
Stackability
2 high
Opening (Width / Height)
40''
 /
70''
Shelves
3
Shelf Positions
17
metric / US (imperial)
TACTICAL LOCKER i90 SC-TL-90-2D-02 1 closed doors

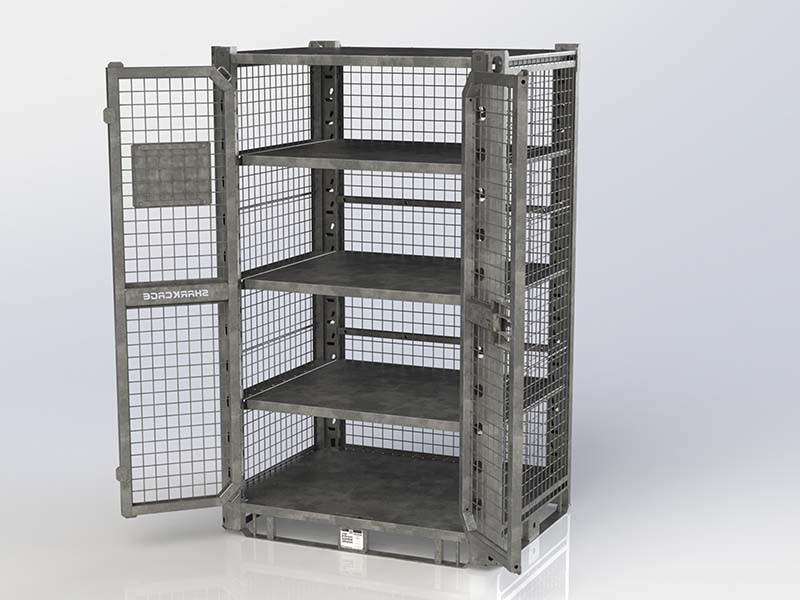

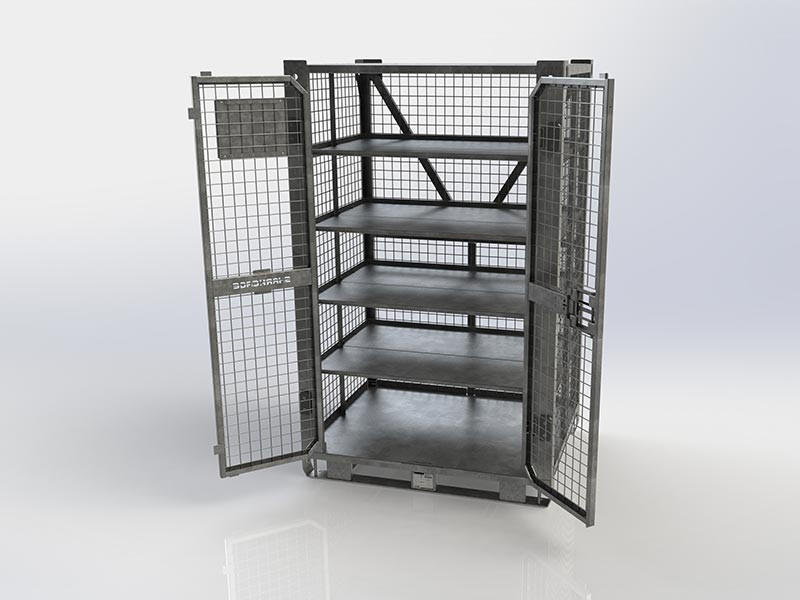

TACTICAL LOCKER i90 SC-TL-90-2D-02 2 open doors

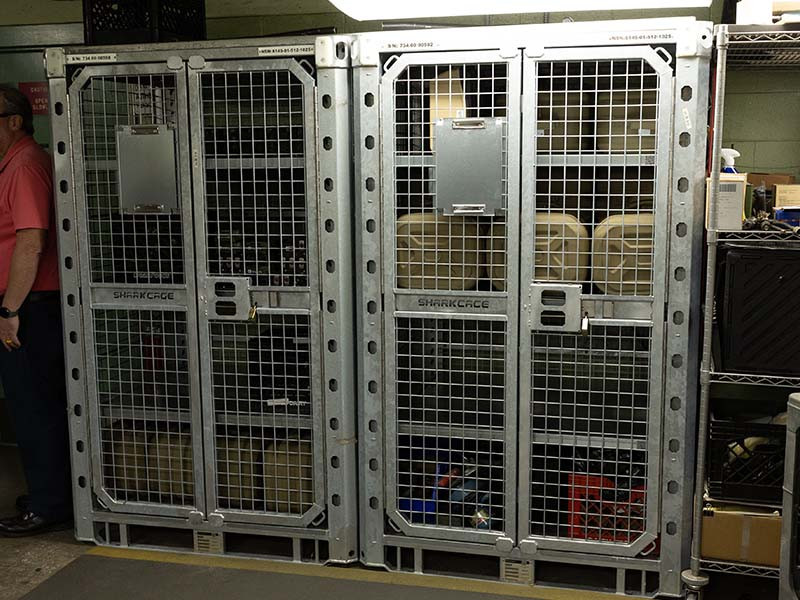

TACTICAL LOCKER i90 SC-TL-90-2D-02 3 at Fort Moore

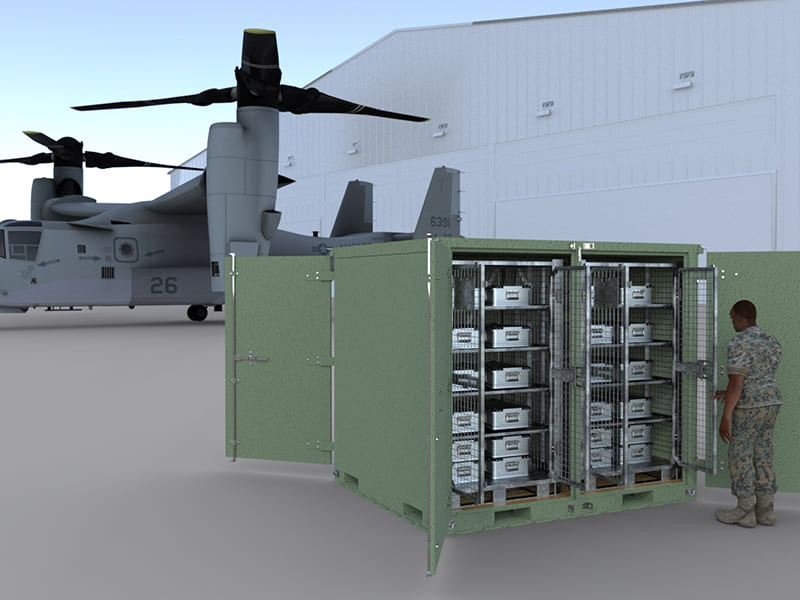

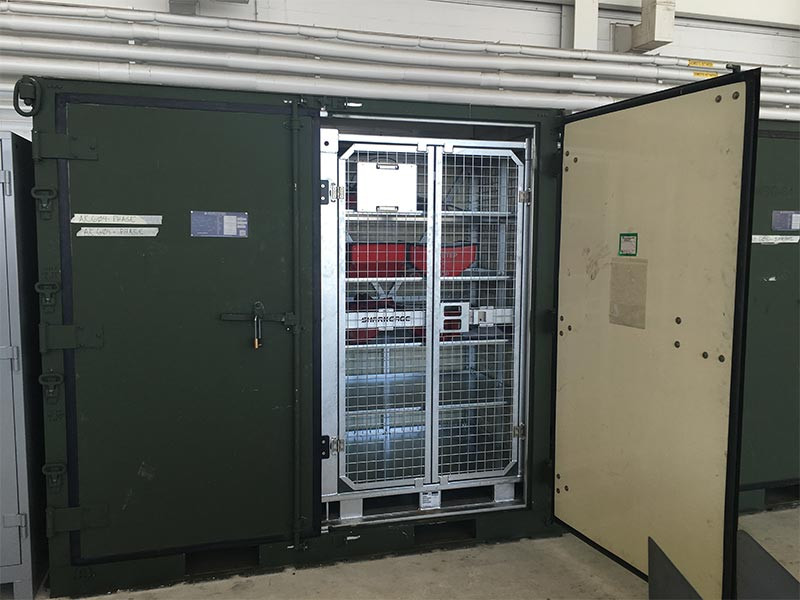

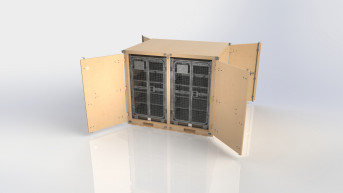

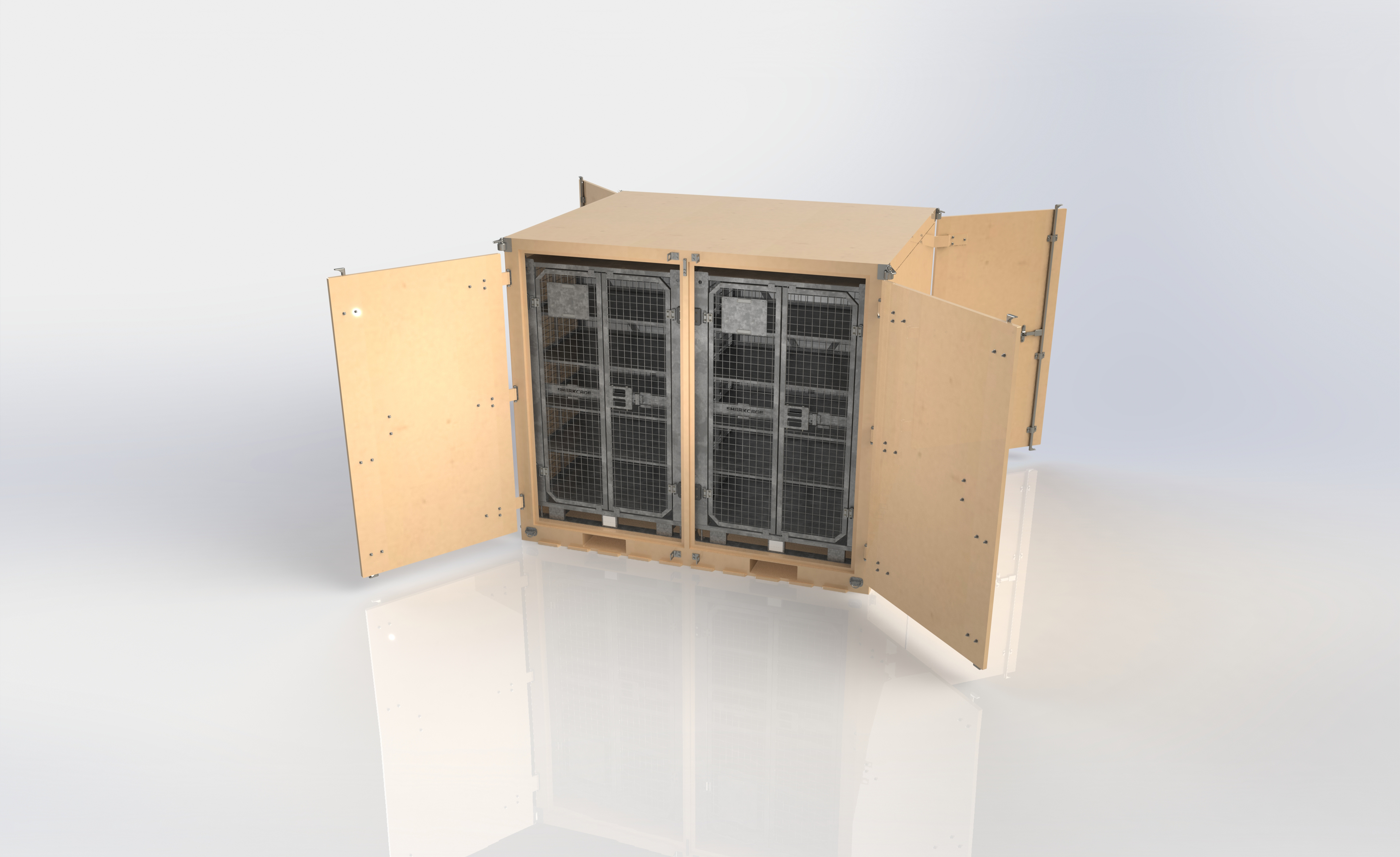

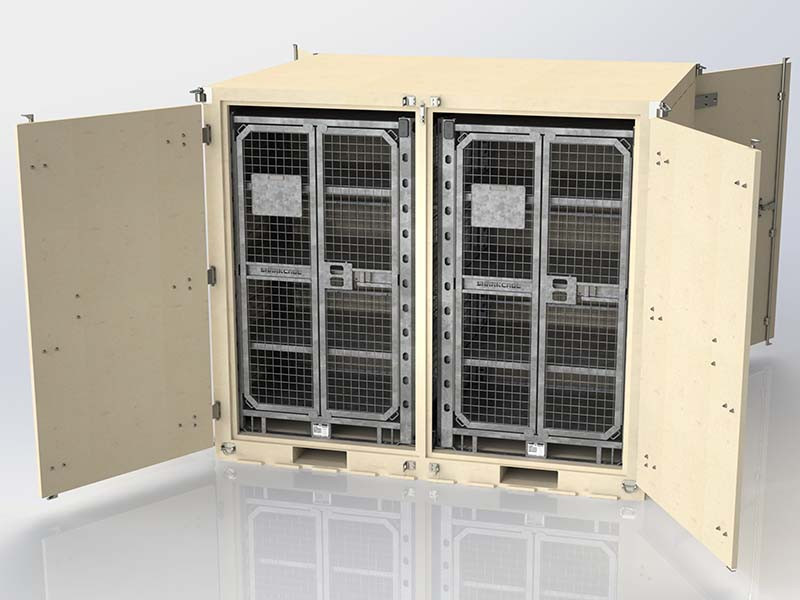

TACTICAL LOCKER i90 SC-TL-90-2D-02 4 in ISU-90 container
CONTAINER RAMP

CONTAINER RAMP

Recomended QUANTITY
1 EA
HEAVY-DUTY COVER

HEAVY-DUTY COVER

Recomended QUANTITY
1 EA
i90 Blocking and Bracing Kit

i90 Blocking and Bracing Kit

Blocking and bracking for the SHARKCAGE OMNI i90
Recomended QUANTITY
1 EA
INCLUDED IN THESE KITS
TACTICAL LOCKER i90 Kit

TACTICAL LOCKER i90 Kit

Kit for outfitting a standard ISU-90 container with 4 ea TACTICAL LOCKER i90s.
PART NO. KIT
SC-TL-90-90-82

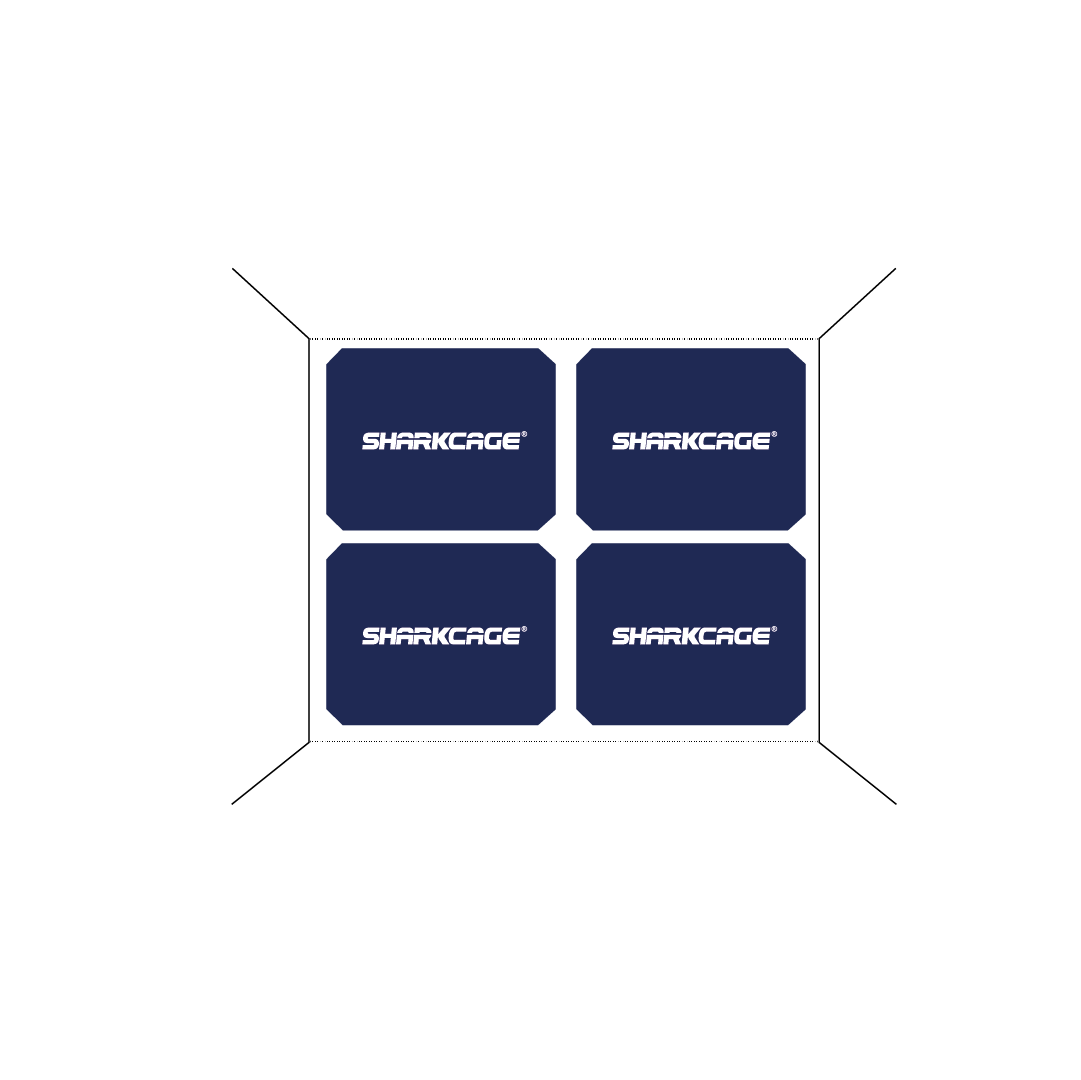

Platform Fit
ISU 90 4-DOOR
QTY: 4 EA
Footprint Utilization: 100%

ISU 90 4-DOOR

External dimensions (W / D / H) [in]:
108 / 88 / 91
Internal dimensions (W / D / H) [in]:
102 / 82 / 83
Door opening (W / H) [in]:
94 / 81
Capacity [lb]:
10000
Weight [lb]:
1720
Deviation from standard: Doors on each 108 axis
Note: Inside is usable space without rails, divider wall and other fixtures subtracted. Usable space with divider wall in is 39.89 in
463L Air Pallet
QTY: 3 EA
Footprint Utilization: 88%

463L Air Pallet

External dimensions (W / D / H) [in]:
108 / 88 / 2
Internal dimensions (W / D / H) [in]:
104 / 84 / 89
Note: Internal dimensions are usable space with open tie downs
Features
Multiple door configurations

Multiple door configurations

Select from hinged doors or panels when customizing your cage.
Custom interiors

Custom interiors

Add custom fasteners or holders to improve organization and simplify content security.
Full container access

Full container access

Access all content in the container from center aisle without downloading the cages.
Toplift

Toplift

Reinforced corner post and connection points to accommodate crane, helicopter lift and UNREP according to MIL-STD- 913A, -209K and -648D. Weld seams inspected according to RCX-3 to ensure safety.
Forkliftable

Forkliftable

4-way forklift capability compatible with most pallet jacks and forklifts. Designed to fulfill both the STANAG-2828 and 2829, as well as MIL-STD-648D, to ensure operability in joint operations.
Stackable

Stackable

Self-centering corners to ensure safety and efficiency in stacking.
Land-sea-air

Land-sea-air

Strong enough for all modes of strategic transport, designed according to MIL-STD- 1791D, -1366E and STANAG-3400.
Intermodal

Intermodal

Transition seamlessly from one mode of transport to the next according to the definition in MIL-STD-3028.
BLOCK & BRACE

BLOCK & BRACE

Integrated system to secure cages during transport and enable access to all contents of the container by leaving the center aisle open as defined by MIL-STD-107J and -1186A.
Content Visibility

Content Visibility

See-through grid enable content visibility at all times. Covers available to temporarily limit visibility.
Lockable

Lockable

Lock using standard issue series 5200 padlocks.
