PRODUCTS / SHARKCAGE / ORIGINAL / ORIGINAL XXL
CODE
SC-CI-XX-4P-02

Download product sheet

ORIGINAL XXL

THE ORIGINAL has a collapsible design, with panels on both sides that are detached when accessing equipment in the cage. Each panel is locked individually with a standard padlock. The cage is split in the center with multiple shelf positions on each side.

External dimension
(Width / Depth / Height)
104 '' / 42 '' / 85''
Weight
1290lbs
Capacity
5000lbs
Shelf Capacity
1000lbs
Material
HDG Steel
Stackability
2 high
Opening (Width / Height)
47''
 /
74''
Shelves
8 compartments - 4 levels
Shelf Positions
11
metric / US (imperial)

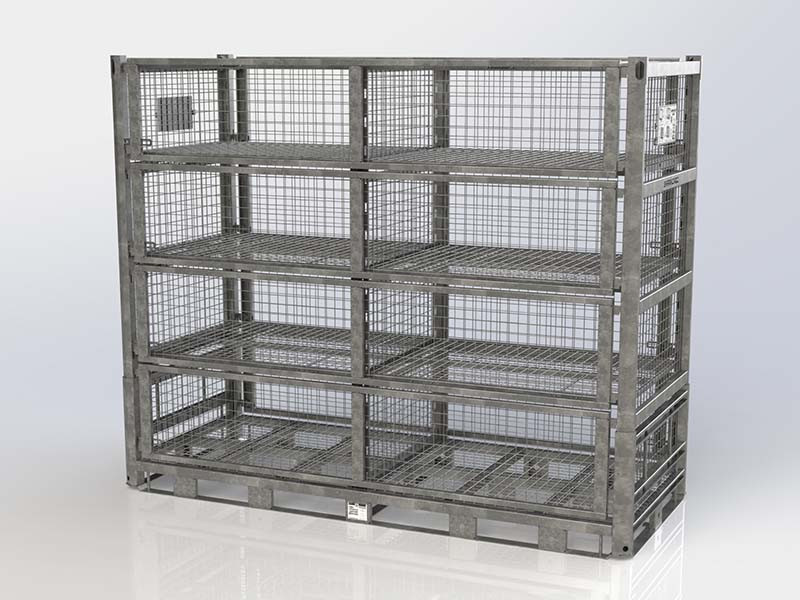

ORIGINAL XXL SC-CI-XX-4P-02 Closed

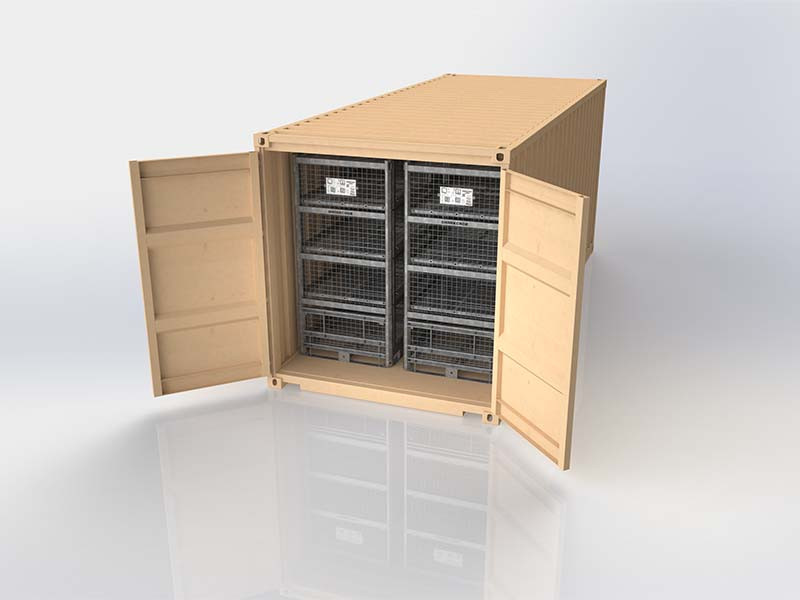

ORIGINAL XXL SC-CI-XX-4P-02 XXL in 20ft shipping container
ORIGINAL XXL SC-CI-XX-4P-02 XXL on 463L air pallet

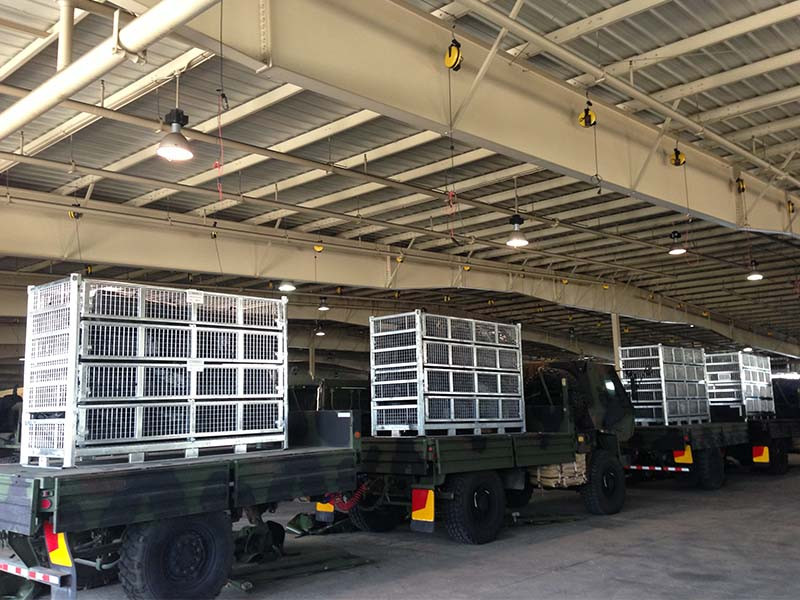

ORIGINAL XXL SC-CI-XX-4P-02 Load testing at APS
Platform Fit
463L Air Pallet
QTY: 2 EA
Footprint Utilization: 100%

463L Air Pallet

External dimensions (W / D / H) [in]:
108 / 88 / 2
Internal dimensions (W / D / H) [in]:
104 / 84 / 89
Note: Internal dimensions are usable space with open tie downs
20ft sideopening container
QTY: 4 EA
Footprint Utilization: 91%

20ft sideopening container

External dimensions (W / D / H) [in]:
96 / 238 / 102
Internal dimensions (W / D / H) [in]:
90 / 232 / 90
Door opening (W / H) [in]:
224 / 85
Deviation from standard: Opening on each long side.
20 ft standard shipping container
QTY: 4 EA
Footprint Utilization: 90%

20 ft standard shipping container

External dimensions (W / D / H) [in]:
96 / 238 / 102
Internal dimensions (W / D / H) [in]:
92 / 231 / 93
Door opening (W / H) [in]:
92 / 89
10ft Standard BICON
QTY: 2 EA
Footprint Utilization: 86%

10ft Standard BICON

External dimensions (W / D / H) [in]:
96 / 118 / 102
Internal dimensions (W / D / H) [in]:
92 / 111 / 93
Door opening (W / H) [in]:
92 / 89
Features
Ammo Certified

Ammo Certified

Certified for ammunition storage and transport by the Defense Ammunition Center according to TP-94-01 Rev 2. Designed according to MIL-STD 1660, with deviating size.
Collapsible

Collapsible

Flat pack when empty to reduce container footprint while shipping or to increase warehouse space.
PANEL DOORS

PANEL DOORS

Front panel-style doors allow each shelf level to be individually secured, and allow cages to be opened when aisles are too narrow for hinged doors.
